Meyer High-End ENT CBCT

Dental Cone-beam Computed Tomography

Think Big, Think Different

Differentiated Design to Enhance Clinic Image

Large Field of View,Meeting the Needs of ENT and Dental Departments

Select：

Inquiry Email 0086-551-65318080

Product Introduction
Product Specificities
Images Bank
Specifications

Product Introduction

Meyer High-End ENT CBCT (supports up to a non-stitched Fov of 23×18 cm, with 3 types of field of view) can produce Panoramic, CT, Ceph images in one single shot, meeting the precise clinical needs of both ENT and comprehensive dental practices.

Product Specificities

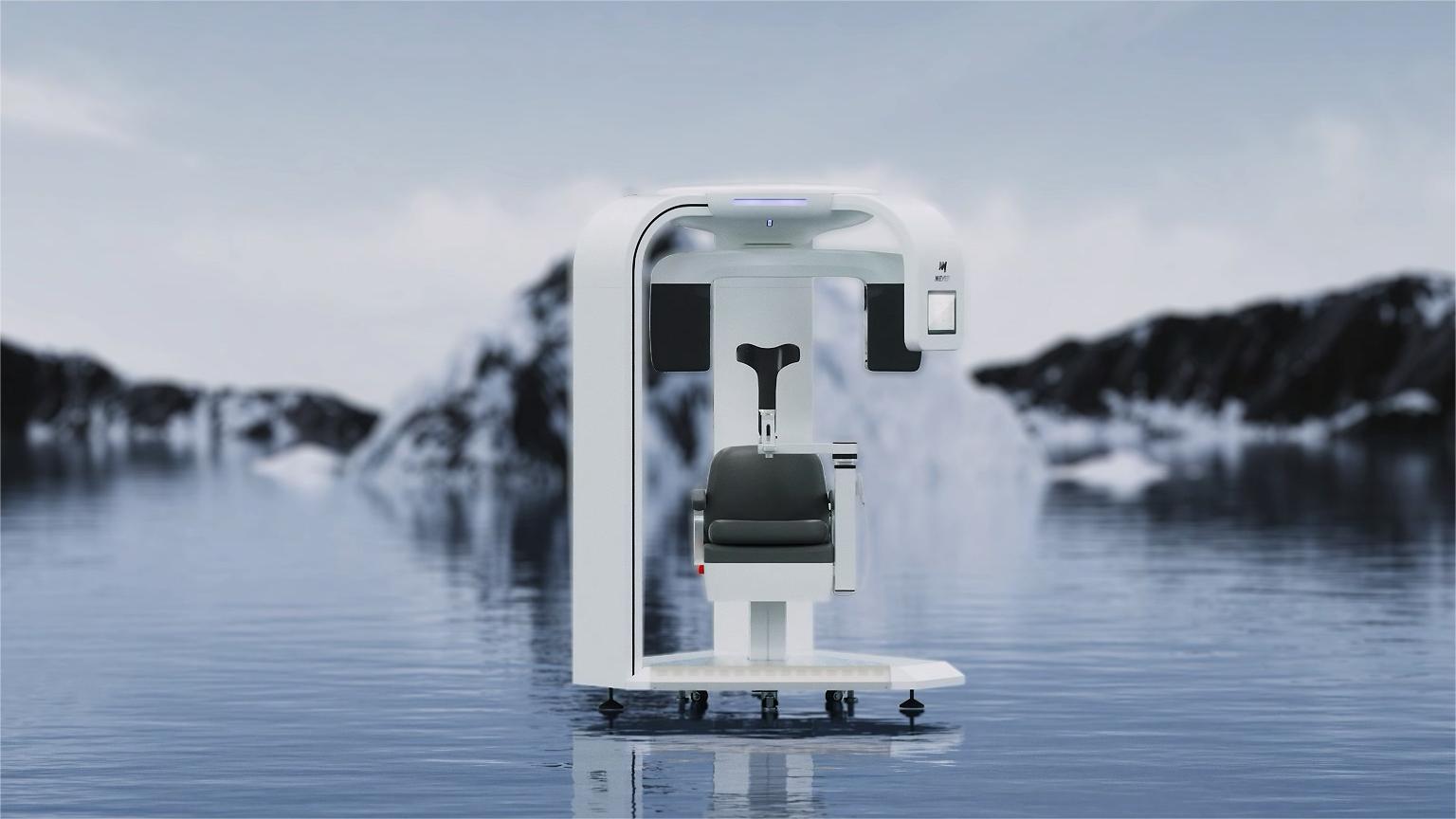

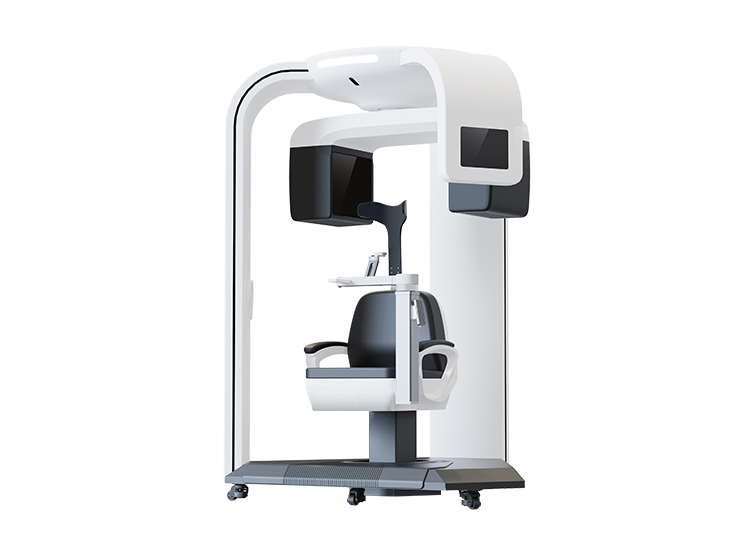

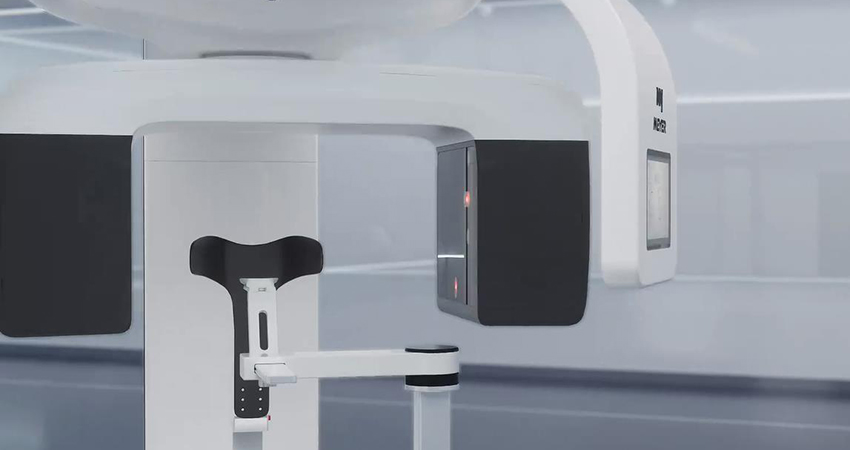

High-end Seated Appearance

Standardized Modular Design + Original "Seated" Aesthetics, creating a "Humble Gentleman Style" appearance.

Helps departments establish a high-end image, promoting image enhancement.

Powerful Integration of Software and Hardware Systems

01

Imaging

Beyond Clarity, Towards Authentic Usefulness
02

Capture

Beyond Stability, Towards Continuous Stability
03

Safety

Beyond Reassurance, Towards Unparalleled Thoughtfulness
04

Software

Beyond Intelligence, Towards Infinite Evolution

Ultra-high resolution of 2.8lp/mm and sensor grayscale of 16 bits

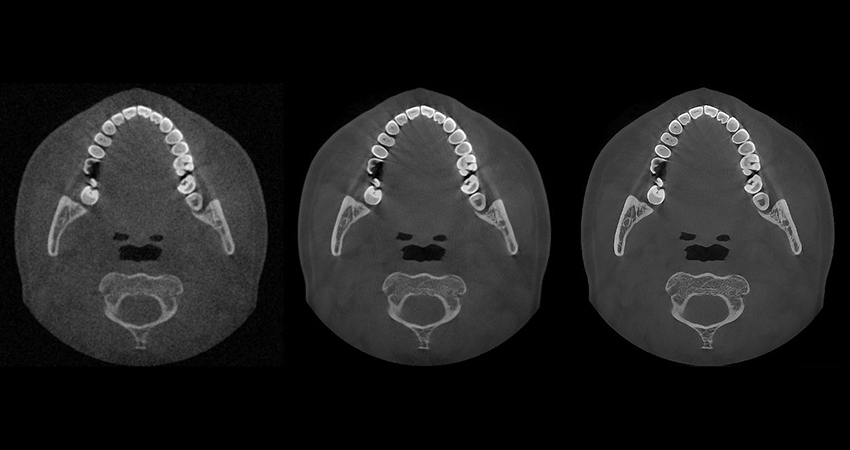

PD (Pure-Detail) imaging processing algorithm technology: Rejects sharpening smears, restores to pure perfection.

Robust high-end hardware configuration;

Improved heat dissipation from structural optimization;

Unmatched 2.5-second image reconstruction speed.

Radiation dose only half of traditional CBCT;

On-demand capture, high-definition imaging in 20 seconds, rapid imaging in just 12 seconds;

Lower positioning threshold, pioneering 4 laser positioning auxiliary lines for localized CT.

More powerful intelligent software, evolving infinitely;

Modular design, in line with the operational habits of Chinese doctors;

Compatible with mainstream surgical navigation devices, providing 3D dynamic imaging guidance for surgery.

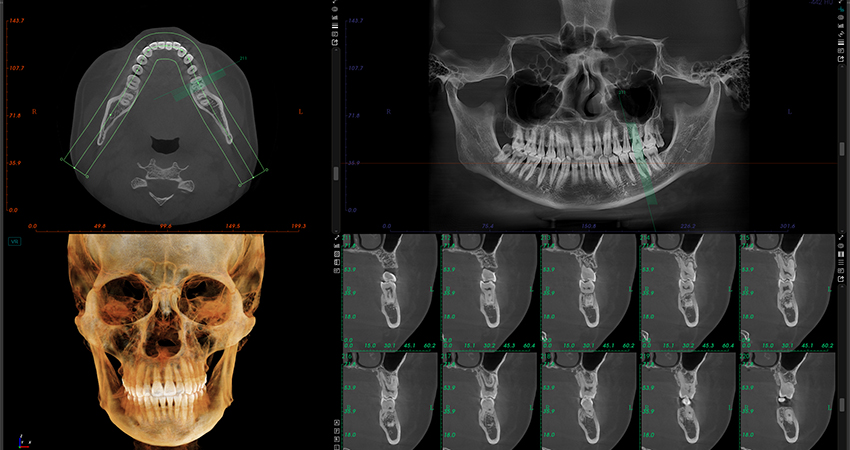

Images Bank

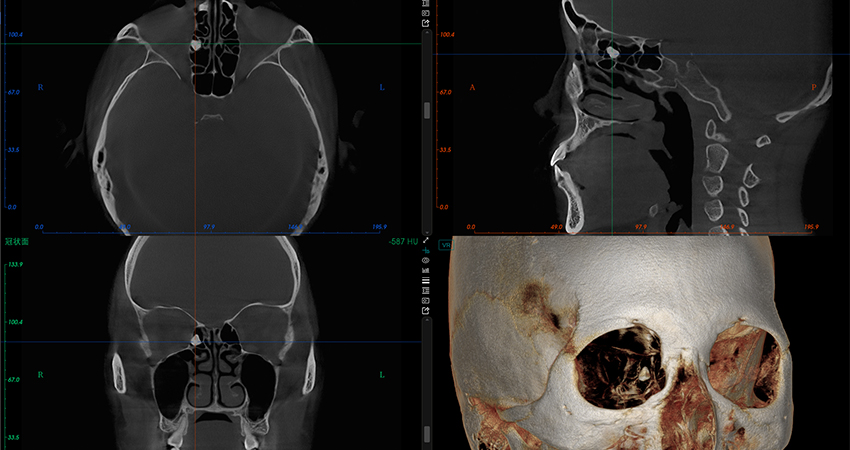

Ethmoid Sinus Osteoma

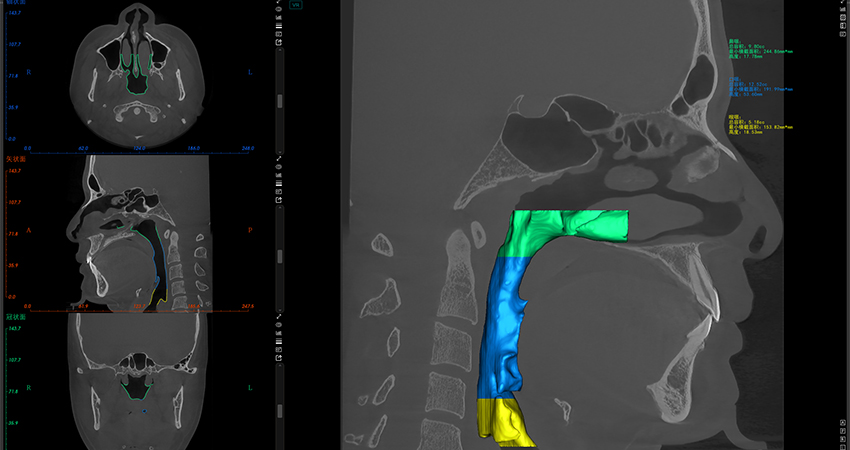

Airway Analysis

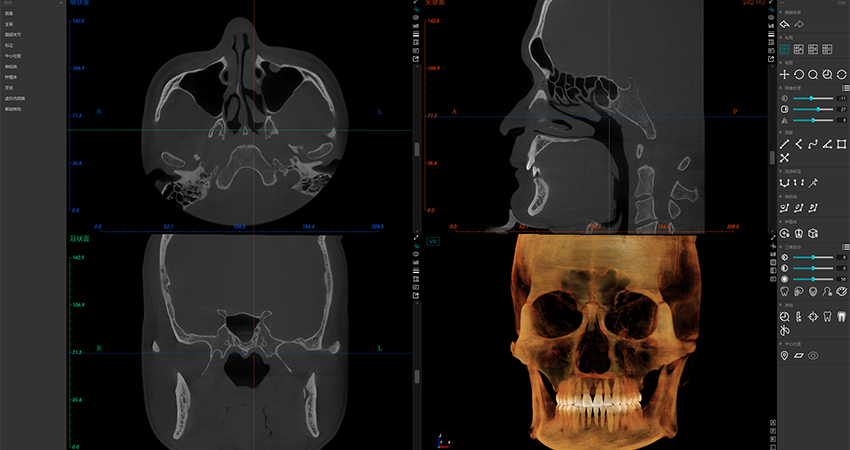

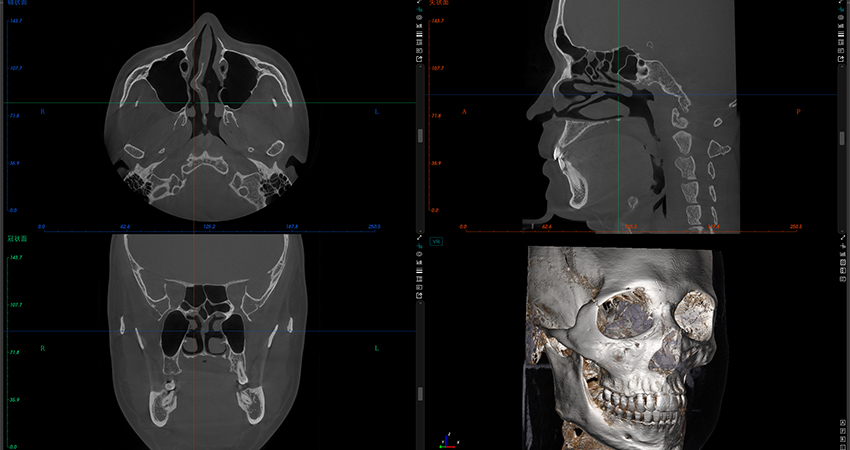

Sinus Observation

Specifications

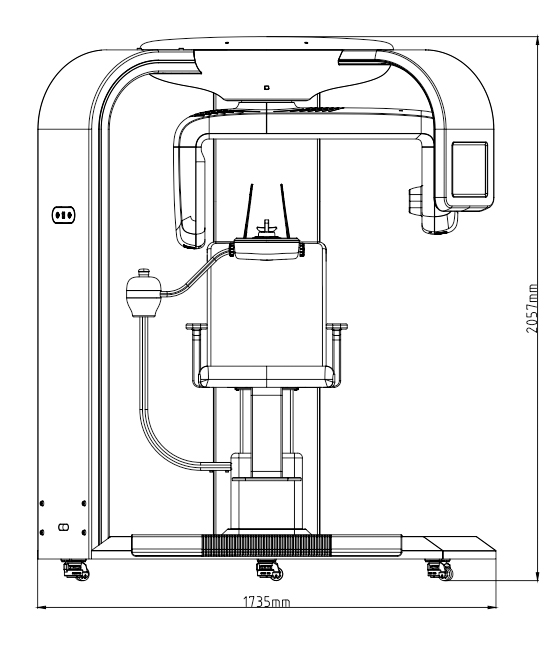

Dimensional Diagram

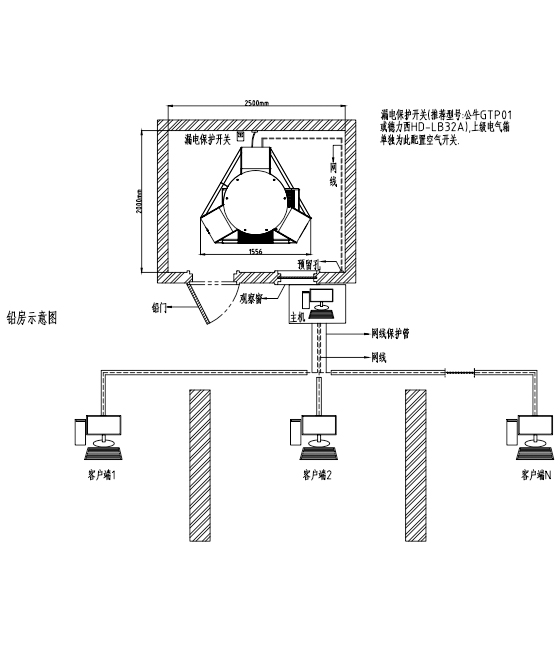

Lead-lined Room Diagram

Fov (diameter cm X height cm)	23X18, 16X10, 5x8
X-ray Tube Voltage	60kV-120kV
X-ray Tube Current	2mA~8mA
Focal Spot	0.5mm
Image Detector	Amorphous Silicon Flat Panel Detector
Voxel Size (mm)	0.42, 0.31, 0.25, 0.18, 0.12, 0.08, 0.07, 0.041
Spatial Resolution	2.8lp/mm
Grat Scale	16bit
Capturing Time	12s(Rapid)/20s(HD)
Minimum Reconstruction Time	2.5s
Weight	370kg
